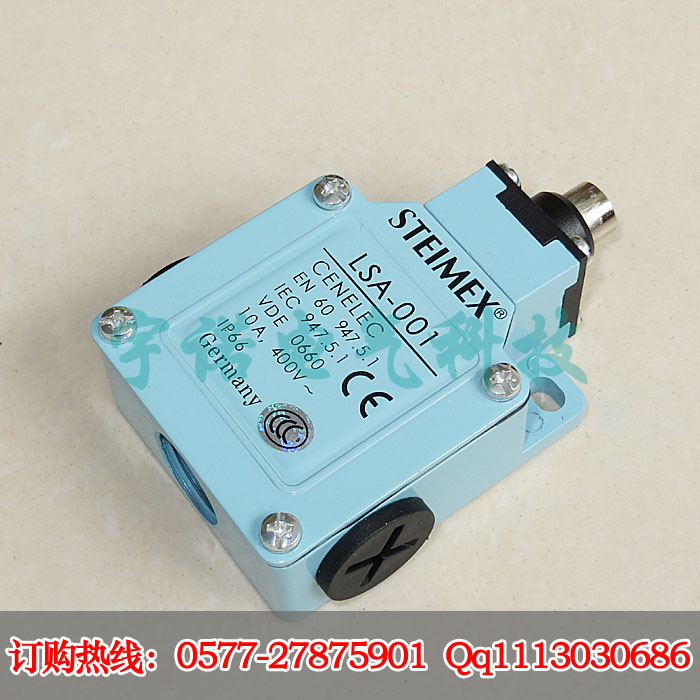

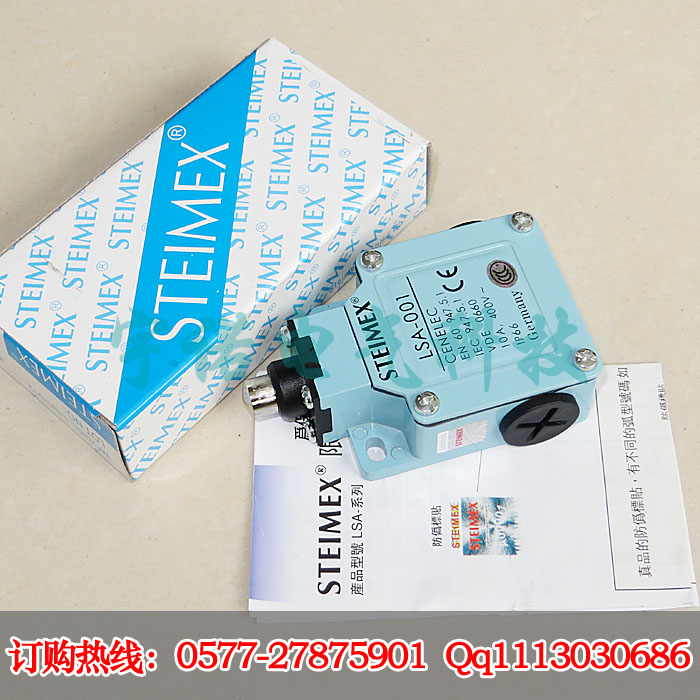

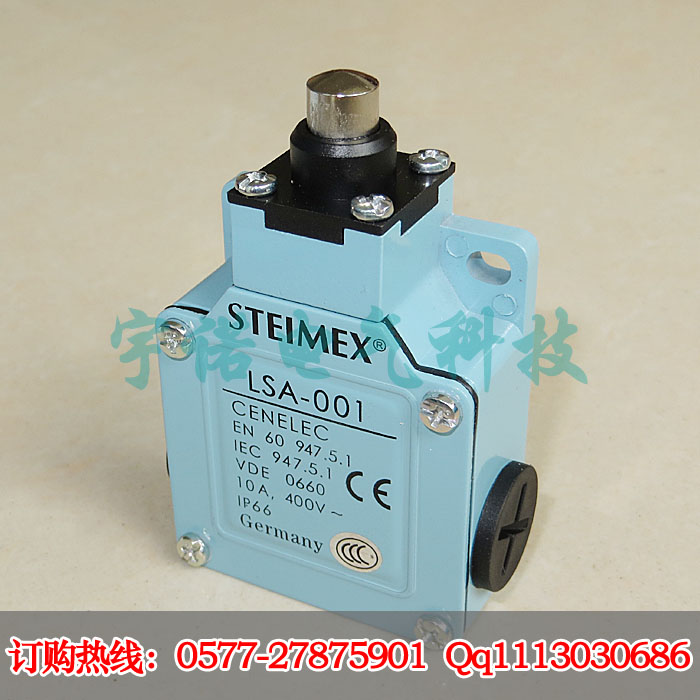

Product name : LSA-001
Item : LSA-001行程限位开关
Voltage : AC380 DC220
Electric current : 5A
Protection level :
 Enlarge Image                   Back
←[Previous Product]


Details:

LSA-001行程开关,LSA-001限位开关

特征

坚硬金属外壳,极大摇臂角度±95°
特长2000万次机械寿命
不锈钢滚轮,冲头及弹簧
可选配PG11索头












产品规格:

LSA

LSA-001

LSA-003

LSA-012

LSA-021

LSA-031

LSA-061

LSA-071

LSA-081

操作力

OF (最大)(Max.)

800g

800g

800g

400g-cm

400g-cm

150g

150g

150g

回弹力

RF (最小)(Min.)

400g

400g

400g

100g-cm

100g-cm

50g

50g

50g

前预行程

PT (最大)(Max.)

1.8mm

1.8mm

1.8mm

20°

20°

30mm

30mm

30mm

触发位置

TP±10%

2.0mm

2.0mm

2.0mm

22.5°

22.5°

22.5°

22.5°

22.5°

行程移动分辨率

MD (最大)(Max.)

1.2mm

1.2mm

1.2mm

10°

10°

14°

14°

14°

触后行程

OT (最小)(Min.)

4.0mm

4.0mm

4.0mm

75°

75°

20mm

20mm

20mm

累积总行程

TT (最小)(Min.)

5.8mm

5.8mm

5.8mm

95°

95°

50mm

50mm

50mm

摇臂转换分角度

22.5°

22.5°



产品特性:

双断开机械功用

INO+INC Force Break snap action强迫断开快速机芯

额定电压/电流

10(4)A, 125, 250VAC / 6(2)A, 380VAC For inductance Load, Cosφ=0.4

接触电阻

25mΩ max. (initial value)

绝缘电阻

100mΩ min. (at 500VDC)

电介强度

1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity

1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts

1500VAC, 50/60 Hz for 1 minute between each terminal and ground

电气寿命

500,000 at 10A 250VAC Resistive

机械寿命

10, 000, 000 operations min. (under rated conditions)

操作速度

5mm/s to 0.5m/s

防水防尘能力

IP66(防压力水柱级)

上升温度

Max 30℃ over ambient temperature at rated voltage/current

合乎标准

Cenelec EN 50041, EN 50047, IEC 337-1, VDE 0660

操作温度

-5℃~+65℃ (with no icing)

保存温度

-5℃~+65℃ (with no icing)

湿度

95% RH Max.

冲击系数

Mechanical durable: 1000m/s2 min.

Malfunction: 300m/s2 min.

振动频率

Malfunction: 10 to 55Hz, 1.5mm double amplitude

端子螺丝扭力

6-8 kgf-cm

其他螺丝扭力

Cover 12-14 kgf-cm/Head 8-9 kgf-cm/Mounting 50-60 kgf/cm

裸铜线尺寸

φ2 Max

电缆尺寸

φ12 Max(IP 65 if use cable φ8-9)
